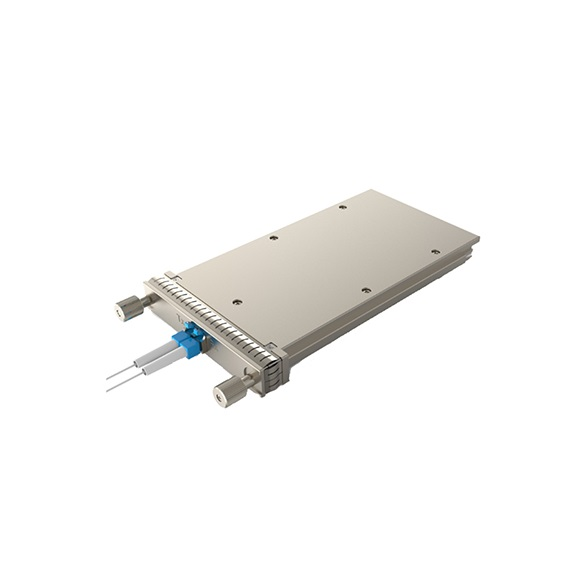

100G CFP-DCO Coherent Optical Transceiver for Long-Haul Transmission

The Gigalight 100G CFP-DCO digital coherent optical transceiver is a hot-pluggable CFP form-factor optical module designed for high-speed optical networking applications including 100-Gigabit Ethernet and OTU4. The CAUI and OTL4.10 electrical interface and MDIO management interface are built in the module.
The 100G CFP-DCO module converts 10-lane 10Gb/s electrical data streams to 128G DP-QPSK optical output signal in Egress and also converts DP-QPSK optical input signals to 10-lane 10Gb/s electrical data streams in ingress. This 10-lane 10Gb/s electrical signal is fully compliant with 802.3ba CAUI specification and OIF-CEI-03.1 specification and allows FR4 host PCB trace up to 25cm.

Features

Operating optical data rate up to 128Gbps
Transmission distance up to 2000km
Low latency H-FEC/SD-FEC
CFP MSA compliant
IEEE 802.3ba MAC compliant
OTU4 and 100GE compatible
OTL4.10 and CAUI compatible
Full C-Band 50GHz ITU-T transmitter
Built-in Client and line OTN processing
Hot-pluggable electrical interface
Duplex LC receptacles
Operating case temperature range 0°C to +70°C
3.3V power supply voltage
RoHS-10 compliant (lead-free)

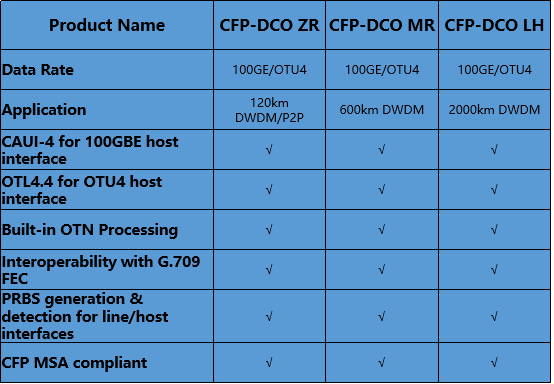

ZR/MR/LH options

Conclusion

Gigalight 100G CFP-DCO coherent optical transceivers have a high integration of product chip scheme, optimized the best performance in the industry and mature chip scheme, high product reliability, good product performance.
The product test of Gigalight coherent optical transceiver meets the 24 hours temperature cycle test without losing the package, ensuring the product quality stability and the lowest failure efficiency.
